| OMRON V680 - новая RFID система радиочастотной
идентификации! |
RFID OMRON V680
|
 |
Представляем вам новую систему радиочастотной идентификации нового
поколения, соответствующую ISO/IEC 18000-3 (ISO/IEC15693). Система
RFID обладает многообразием функций и отвечает требования различных
производственных линий. RFID V680 обеспечивает высокоскоростную
передачу данных со скоростью до 27 kbps. Для системы V680 доступно
множество меток, обладающих ультра компактными размерами, высокой
надежностью и не требующих обслуживания. Используя специальное
программное обеспечение V680-A-IMMEG-P01 для создания ID карт
памяти, вы существенно сокращаете время, требующееся на разработку

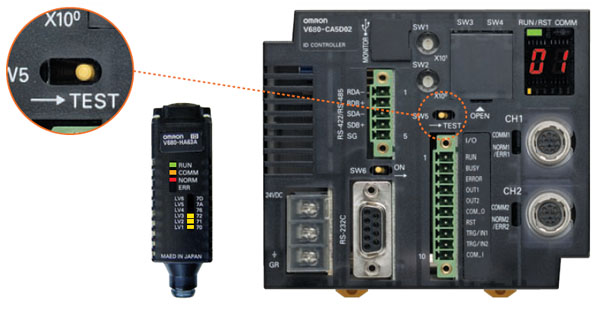

системы. Возможна визуализация передачи данных. Система обладает
функциями диагностики коммуникационных условий, а так же системой
измерения уровня помех.
|
| |
| ОСОБЕННОСТИ: |
|
Возможна визуализация передачи данных. |
|
Система обладает функциями диагностики |
|

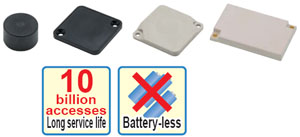

Различные типы меток
 |
|
ID метки |
|
Type |
Memory
capacity |
Appearance |
Size |
Metallic
compatibility |
Model |
|
Battery-
less |
1 Kbyte |
 |
Cylindrical,
ultra-compact
8 dia. × 5 mm |
For embedding in metallic
or non-metallic surface |
V680-D1KP52MT |
|
 |
Square
34 × 34 × 3.5 mm |
For flush mounting on
metallic surface |
V680-D1KP66MT |
|
For flush mounting on
non-metallic surface |
V680-D1KP66T |
|
 |
Square PFA
package
95 × 36.5 × 6.5 mm |
For flush mounting on
non-metallic surface |
V680-D1KP66T-SP |
|
 |
80 dia. × t10 mm
(High-temperature type) |
For flush mounting on
non-metallic surface |
V680-D1KP58HT |
|
2 Kbytes |
 |
Cylindrical,
ultra-compact
8 dia. × 5 mm |
For embedding in metallic
or non-metallic surface |
V680-D2KF52M |
|
 |
Square
40 × 40 × 4.5 mm |
For flush mounting on
metallic surface |
V680-D2KF67M |
|
For flush mounting on
non-metallic surface |
V680-D2KF67 |
|
8 Kbytes |
|
86 × 54 ×
10 mm |
For flush mounting on
non-metallic surface |
V680-D8KF68 |
|
32 Kbytes |
V680-D32KF68 |
|
|
Антенна запись/чтение (бесконтактная, необходим усилитель) |
|
Type |
Appearance |
Size |
Cable
length |
Model |
|
Cylindrical |
Standard
cable,
waterproof connector |
 |
M22 × 65 mm |
2 m |
V680-HS52-W 2M |
|
12.5 m |
V680-HS52-W 12.5M |
|
Flexible cable, non-
waterproof connector |
2 m |
V680-HS52-R 2M |
|
12.5 m |
V680-HS52-R 12.5M |
|
Standard cable, non-
waterproof connector |
 |
M12 × 35 mm |
2 m |
V680-HS51 2M |
|
Square |
Standard
cable,
waterproof connector |
 |
40 × 53 ×
23 mm |
2 m |
V680-HS63-W 2M |
|
12.5 m |
V680-HS63-W 12.5M |
|
Flexible cable, non-
waterproof connector |
2 m |
V680-HS63-R 2M |
|
12.5 m |
V680-HS63-R 12.5M |
|
Standard
cable,
waterproof connector |
 |
100 × 100 ×
30 mm |
2 m |
V680-HS65-W 2M |
|
12.5 m |
V680-HS65-W 12.5M |
|
Flexible cable, non-
waterproof connector |
2 m |
V680-HS65-R 2M |
|
12.5 m |
V680-HS65-R 12.5M |
|
|
Антенна запись/чтение со встроенным усилителем |
|
Type |
Appearance |
Size |
Cable
length |
Model |
|
Square |
 |
250 × 200 ×
35 mm |
0.5 m (See
note.) |
V680-H01 |
|
|
Усилители |
|
Type |
Appearance |
Size |
Cable
length |
Model |
|
For 1-Kbyte
memory |
 |
25 × 40 ×
65 mm |
5 m |
V680-HA63A
5M |
|
10 m |
V680-HA63A
10M |
|
For
2-/8-/32-Kbyte memory |
 |
5 m |
V680-HA63B
5M |
|
10 m |
V680-HA63B
10M |
|
|
Контроллер |
|
Type |
No. of
connectable
Amplifiers |
Appearance |
Size |
Transmission interface |
Model |
|
DC
power
supply |
Single |
 |
105 × 90 ×
65 mm |
RS232C,
RS422/RS485 |
V680-CA5D01-V2 |
|
Dual |
 |
V680-CA5D02-V2 |
|
|
Модули идентификации |
|
Type |
Unit name |
Connected
ID System |
External
power
supply |
No. of unit
numbers
used |
Current
consumption (A) |
Model |
|
5 V |
24 V |
External |
|
CJ1
Special
I/O Unit |
 |
V680
Series |
1 Head |
--- |
1 unit
number |
0.26 |
0.13
(See note.) |
--- |
CJ1W-V680C11 |
|
2 Heads |
2 unit
number |
0.32 |
0.26 |
--- |
CJ1W-V680C12 |
|
Type |
Unit name |
Connected
ID System |
External
power
supply |
No. of unit
numbers
used |
Current
consumption (A) |
Model |
|
5 V |
24 V |
External |
|
CS1
Special
I/O Unit |
 |
V680
Series |
1 Head |
--- |
1 Head |
0.26 |
0.13
(See note.) |
--- |
CS1W-V680C11 |
|
2 Heads |
24 VDC |
2 Heads |
0.32 |
--- |
0.36 |
CS1W-V680C12 |
|
|
Ручной модуль запаси/считывания |
|
Name |
Model |
|
Model with USB connector and 0.8-m cable |
V680-CHUD
0.8M |
|
Model with USB connector and 1.9-m cable |
V680-CHUD
1.9M |
|
Model with RS-232C connector and 2.5-m cable
(for use with a personal computer or programmable
controller) |
V680-CH1D |
|
Model with RS-232C connector and 0.8-m cable
(Recommended: Psion Teklogix Handheld Terminal) |
V680-CH1D-PSI |
|
AC Adapter (for V680-CH1D) |
V600-A22 |
|
|
Psion Teklogix Handheld Terminals Set |
|
Name |
Psion
Teklogix
model number |
OMRON
model number |
Set
contents |
|
Handheld
Terminal Set
(English OS) |
7527S-G2-EG-S |
V680-A-7527S-G2-EG-S |
Handheld Terminal, RS-232C interface,
hand strap, and charger (standard model) |
|
|
Аксессуары |
|
ID Tag Attachment |
|
Type |
Appearance |
Model |
|
For the
V680-D1KP66T |
 |
V600-A86 |
|
For the V680-D[]KF68 |
 |
V680-A81 |
|
To mount the V680-D1KP58HT |
 |
V680-A80 |
|
|
Amplifier Unit Special Extension Cable (Amplifier Unit to Controller) |
|
Cable
length |
Appearance |
Model |
|
10 m |
 |
V700-A43
10 M |
|
20 m |
V700-A44
20 M |
|
|
V680-H01 Read/Write Antenna Special Cable (Read/Write Antenna to
Controller) |
|
Cable
length |
Appearance |
Model |
|
2 m |
 |
V700-A40-W 2M |
|
5 m |
V700-A40-W 5M |
|
10 m |
V700-A40-W 10M |
|
20 m |
V700-A40-W 20M |
|
30 m |
V700-A40-W 30M |
|
|
RS-232C Communications Connector |
|
Name |
Model |
|
Connector
Plug |
XM3B-0922-111 |
|
Connector
Hood |
XM2S-0911 |
|
|
Программное обеспечение ID Map Manager (for Windows) |
|
Type |
Model |
|
English
version |
V680-A-IMMEG-P01 |
|
Psion Teklogix Handheld Terminals
Handheld Terminal Set |
|
Name |
Psion
Teklogix
model number |
OMRON
model number |
Configuration |
|
Handheld
Terminal Set
(English OS) |
7527S-G2-EG-S |
V680-A-7527S-G2-EG-S |
Handheld Terminal, RS-232C interface,
hand strap, and charger (standard model) |
|
|
Handheld Terminal Only |
|
Name |
Appearance |
Size |
Psion
Teklogix
model number |
OMRON
model number |
Configuration |
|
Handheld
Terminal
(English OS) |
 |
90 × 210
× 42 mm |
7527S-G2-EG |
V680-A-7527S-G2-EG |
Handheld Terminal, RS-232C
interface, and hand strap |
|
|
Handheld Terminal Accessories |
|
Name |
Appearance |
Size |
Psion
Teklogix
model number |
OMRON
model number |
|
High-capacity Battery |
 |
55 × 35 ×
18 mm |
WA3006 |
V680-A-WA3006 |
|
Charger
(standard model) |
 |
Adapter: 48
× 70 × 27 mm
Cable: 1,800 mm |
CA1053 |
V680-A-CA1053 |
|
Charger
(advanced model) |
 |
Charger: 168 × 185 × 110 mm
Enclosed USB cable: 1,500 mm |
WA4003 |
V680-A-WA4003 |
|
Carrying
Case |
 |
Handheld Reader Writer Cover:
85 × 200 × 50 mm
Strap: 150 mm |
WA6197 |
V680-A-WA6197 |
|
|
ТЕХНИЧЕСКАЯ ДОКУМЕНТАЦИЯ |
|
Технические данные
(English)
OMRON V680 (3 061 kb) |
|
