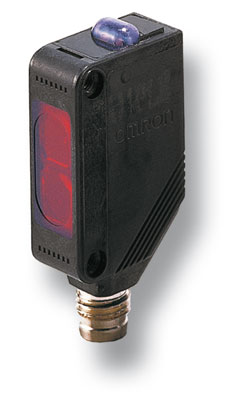

Omron E3Z фотоэлектрический датчик
|
Датчики общего назначения в компактном пластиковом корпусе
|
 |
Компактный корпус и мощный светодиод обеспечивают оптимальное
сочетание высокой функциональности и компактности и наилучшее
соотношение "цена/функциональность" при решении типовых задач.
|
| |
| ОСОБЕННОСТИ: |
|
Компактный корпус и мощный светодиод обеспечивают превосходное
сочетание функциональности и компактности. |
|
Исполнения IP67 и IP69k для максимальной защиты в условиях
повышенной влажности |
|
Тщательное экранирование для достижения наивысшей помехоустойчивости
(ЭМС) |
|
Жесткий корпус из полибутилентерефталата (PBT) для повышенной
механической прочности |
|
|
|
ФОТОДАТЧИК OMRON E3Z |
 |
|
Sensing
method |
Appearance |
Connection method |
Sensing
distance |
Model |
|
NPN
output |
PNP
output |
|
Through-beam |
 |
Pre-wired (2 m) *3, *4 |
 |
E3Z-T61
*5, *6 |
E3Z-T81 |
|
Connector (M8, 4 pins) |
E3Z-T66 |
E3Z-T86 |
|
Pre-wired (2 m) *3 |
 |
E3Z-T61A
*5 |
E3Z-T81A |
|
Connector (M8, 4 pins) |
E3Z-T66A |
E3Z-T86A |
|
Pre-wired (2 m) *3 |
 |
E3Z-T62 |
E3Z-T82 |
|
Connector (M8, 4 pins) |
E3Z-T67 |
E3Z-T87 |
|
Pre-wired (2 m) *3 |
E3Z-T62-G0 |
E3Z-T82-G0 |
|
Connector (M8, 4 pins) |
E3Z-T67-G0 |
E3Z-T87-G0 |
|
Oil-resistive
Through-beam |
 |
Pre-wired (2 m) |
 |
E3Z-T61K |
E3Z-T81K |
|
Pre-wired Connector
(M8, 4 pins) |
E3Z-T61K-M3J |
E3Z-T81K-M3J |
|
Retro-reflective
with MSR function |
 |
Pre-wired (2 m) *3, *4 |
 |
E3Z-R61
*5, *6 |
E3Z-R81 |
|
Connector (M8, 4 pins) |
E3Z-R66 |
E3Z-R86 |
|
Oil-resistive
Retro-reflective
with MSR function |
|
Pre-wired (2 m) |
 |
E3Z-R61K |
E3Z-R81K |
|
Pre-wired Connector
(M8, 4 pins) |
E3Z-R61K-M3J |
E3Z-R81K-M3J |
|
Diffuse-reflective |
 |
Pre-wired (2 m) *3, *4 |
 |
E3Z-D61
*5, *6 |
E3Z-D81 |
|
Connector (M8, 4 pins) |
E3Z-D66 |
E3Z-D86 |
|
Pre-wired (2 m) *3, *4 |
 |
E3Z-D62
*5, *6 |
E3Z-D82 |
|
Connector (M8, 4 pins) |
E3Z-D67 |
E3Z-D87 |
|
Oil-resistive
Diffuse-reflective |
|
Pre-wired (2 m) |
 |
E3Z-D61K |
E3Z-D81K |
|
Pre-wired Connector
(M8, 4 pins) |
E3Z-D61K-M3J |
E3Z-D81K-M3J |
|
Pre-wired (2 m) |
 |
E3Z-D62K |
E3Z-D82K |
|
Pre-wired Connector
(M8, 4 pins) |
E3Z-D62K-M3J |
E3Z-D82K-M3J |
|
Distance-settable |
|
Pre-wired (2 m) *3 |
 |
E3Z-LS61
*5 |
E3Z-LS81 |
|
Standard
M8
Connector |
E3Z-LS66 |
E3Z-LS86 |
|
Pre-wired (2 m) *3 |
 |
E3Z-LS63 |
E3Z-LS83 |
|
Standard
M8
Connector |
E3Z-LS68 |
E3Z-LS88 |
|
Narrow-beam
Reflective |
|
Pre-wired (2 m) *3 |
 |
E3Z-L61
*5 |
E3Z-L81 |
|
Standard
M8
Connector |
E3Z-L66 |
E3Z-L86 |
|
Retro-reflective
without MSR
function for clear,
plastic bottles |
|
Pre-wired (2 m) *3 |
 |
E3Z-B61
*5 |
E3Z-B81 |
|
Standard
M8
Connector |
E3Z-B66 |
E3Z-B86 |
|
Pre-wired (2 m) *3 |
 |
E3Z-B62
*5 |
E3Z-B82 |
|
Standard
M8
Connector |
E3Z-B67 |
E3Z-B87 |
|
Slit-type
Through-beam |
 |
1 axis |
Pre-wired (2 m) *3 |
 |
E3Z-G61
*5 |
E3Z-G81 |
|
2 axes |
E3Z-G62
*5 |
E3Z-G82 |
|
1 axis |
Standard
M8
Connector |
E3Z-G61-M3J |
E3Z-G81-M3J |
|
2 axes |
E3Z-G62-M3J |
E3Z-G82-M3J |
|
|
|
|
АКСЕССУАРЫ ДЛЯ ДАТЧИКОВ OMRON E3Z |
|
SLIT |
|
Slit
width |
Sensing
distance |
Minimum
detectable
object (typical) |
Model |
Contents |
|
E3Z-T[][] |
E3Z-T[][]A |
|
0.5 mm dia. |
50 mm |
35 mm |
0.2 mm dia. |
E39-S65A |
One set
(contains Slits for both
the Emitter and Receiver) |
|
1 mm dia. |
200 mm |
150 mm |
0.4 mm dia. |
E39-S65B |
|
2 mm dia. |
800 mm |
550 mm |
0.7 mm dia. |
E39-S65C |
|
0.5 × 10 mm |
1 m |
700 mm |
0.2 mm dia. |
E39-S65D |
|
1 × 10 mm |
2.2 m |
1.5 m |
0.5 mm dia. |
E39-S65E |
|
2 × 10 mm |
5 m |
3.5 m |
0.8 mm dia. |
E39-S65F |
|
|
|
|
РЕФЛЕКТОРЫ |
|
Name |
E3Z-R
Sensing distance
(typical) * |
Model |
Quantity |
Remarks |
|
Reflector |
3 m (100 mm)
(rated value) |
E39-R1 |
1 |
Retro-reflective models are not provided with Reflectors.
The MSR function is enabled. |
|
4 m (100 mm)
(rated value) |
E39-R1S |
1 |
|
5 m (100 mm) |
E39-R2 |
1 |
|
2.5 m (100
mm) |
E39-R9 |
1 |
|
3.5 m (100
mm) |
E39-R10 |
1 |
|
Fog
Preventive
Coating |
3 m (100 mm) |
E39-R1K |
1 |
|
Small
Reflector |
1.5 m (50
mm) |
E39-R3 |
1 |
|
Tape
Reflector |
700 mm (150
mm) |
E39-RS1 |
1 |
|
1.1 m (150
mm) |
E39-RS2 |
1 |
|
1.4 m (150
mm) |
E39-RS3 |
1 |
|
|
|
|
ЗАЩИТНЫЙ ФИЛЬТР ВЗАИМНОЙ ИНТЕРФЕРЕНЦИИ |
|
Sensing
distance |
Appearance/
Dimensions |
Model |
Quantity |
Remarks |
|
3 m |
 |
E39-E11 |
Two sets each for the
Emitter and Receiver
(total of four pieces) |
Can be used with the E3Z-T[][]A Through-beam
models. The arrow indicates the direction of
polarized light. Mutual interference can be
prevented by altering the direction of polarized
light from or to adjacent Emitters and Receivers. |
|
|
|
|
КРЕПЕЖНЫЙ ЭЛЕМЕНТ |
|
Appearance |
Model |
Quantity |
Remarks |
|
|
 |
E39-L153 |
1 |
Mounting
Brackets |
|
|
 |
E39-L104 |
1 |
|
|
 |
E39-L43 |
1 |
Horizontal Mounting Brackets * |
|
|
 |
E39-L142 |
1 |
Horizontal Protective Cover Bracket * |
|
|
 |
E39-L44 |
1 |
Rear
Mounting Bracket |
|
|
 |
E39-L98 |
1 |
Metal
Protective Cover Bracket * |
|
|
 |
E39-L150 |
1 set |
(Sensor adjuster)
Easily mounted to the aluminum frame rails of conveyors and
easily adjusted.
For left to right adjustment |
|
|
 |
E39-L151 |
1 set |
|
|
|
|
 |
E39-L144 |
1 |
Compact Protective Cover Bracket (For E3Z only) * |
|
|
|
|
|
КОННЕКТОРЫ и КАБЕЛИ ДЛЯ ДАТЧИКОВ |
|
Size |
Cable |
Appearance |
Cable
type |
Model |
|
M8 * |
Standard |
 |
2 m |
4-wire |
XS3F-M421-402-A |
|
5 m |
XS3F-M421-405-A |
|
 |
2 m |
XS3F-M422-402-A |
|
5 m |
XS3F-M422-405-A |
|
M12 *
(For -M1J models) |
 |
2 m |
3-wire |
XS2F-D421-DC0-A |
|
5 m |
XS2F-D421-GC0-A |
|
 |
2 m |
XS2F-D422-DC0-A |
|
5 m |
XS2F-D422-GC0-A |
|
e-CON |
 |
2 m |
4-wire |
E39-ECON2M |
|
5 m |
E39-ECON5M |
|
 |
0.5 to 1 m |
E39-ECONW[]M
[] indicates cable length
(in units of m).
Specify
with 0.1-increments. |
|
1.1 to 1.5
m |
|
1.6 to 2 m |
|
|
|
|
ТЕХНИЧЕСКАЯ ДОКУМЕНТАЦИЯ OMRON
E3Z |
|
Технические данные
(English) OMRON E3Z (3 213 kb) |
|
Серия E3Z с
функцией прогнозирования профилактического обслуживания (1
219 kb) |
|
