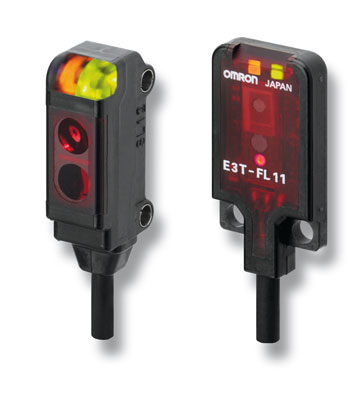

Фотодатчик Omron E3T в миниатюрном
пластиковом корпусе
|
|
|
Миниатюрные датчики в пластиковом корпусе
|
 |
Малогабаритные фотоэлектрические датчики квадратной формы с
высокоэффективным точечным светодиодом для нестандартных условий
монтажа.
|
| |
| ОСОБЕННОСТИ: |
|
Мощный точечный светодиод сверхмалых размеров для монтажа в
ограниченном пространстве |
|
Плоский корпус толщиной 3,5 мм или 7 мм для монтажа с боковым
обзором |
|
Степень защиты IP67 |
|
|
|
ФОТОДАТЧИК OMRON E3T |
|
Sensing
method |
Appearance |
Connection
method |
Sensing
distance |
Operation
mode |
Model |
|
NPN
output |
PNP
output |
|
Through-
beam |
 |
Side-view
 |
Pre-wired |
1 m
(Sensitivity Adjustment
Unit can be used.)
(Red
light) |
Light-ON |
E3T-ST11
*2 *3 |
E3T-ST13 |
|
Dark-ON |
E3T-ST12
*2 *3 |
E3T-ST14 |
|
300 mm
(Red light) |
Light-ON |
E3T-ST21
*3 |
E3T-ST23 |
|
Dark-ON |
E3T-ST22
*3 |
E3T-ST24 |
|
 |
Flat
 |
500 mm
(Red light) |
Light-ON |
E3T-FT11
*2 *3 |
E3T-FT13 |
|
Dark-ON |
E3T-FT12
*2 *3 |
E3T-FT14 |
|
300 mm
(Red light) |
Light-ON |
E3T-FT21
*3 |
E3T-FT23 |
|
Dark-ON |
E3T-FT22
*3 |
E3T-FT24 |
|
Retro-
reflective |
 |
Side-view
 |
200 mm
(10 mm) *1
(For E39-R4 only)
(Red light) |
Light-ON |
E3T-SR21
*2 *3 |
E3T-SR23 |
|
Dark-ON |
E3T-SR22
*2 *3 |
E3T-SR24 |
|
 |
Side-view
|
100 mm
(10 mm) *1
(For E39-R37 only)
(Red light) |
Light-ON |
E3T-SR31
*2 *3 |
E3T-SR33 |
|
Dark-ON |
E3T-SR32
*2 *3 |
E3T-SR34 |
|
Diffuse-
reflective |
 |
Flat
 |
5 to 30 mm
(Red light) |
Light-ON |
E3T-FD11
*2 *3 |
E3T-FD13 |
|
Dark-ON |
E3T-FD12
*2 *3 |
E3T-FD14 |
|
Convergent-
reflective |
 |
Side-view
 |
5 to 15 mm
(Red light) |
Light-ON |
E3T-SL11
*2 *3 |
E3T-SL13 |
|
Dark-ON |
E3T-SL12
*2 *3 |
E3T-SL14 |
|
5 to 30 mm
(Red light) |
Light-ON |
E3T-SL21
*2 *3 |
E3T-SL23 |
|
Dark-ON |
E3T-SL22
*2 *3 |
E3T-SL24 |
|
BGS
reflective |
 |
Flat
 |
1 to 15 mm
(Red light) |
Light-ON |
E3T-FL11
*2 *3 |
E3T-FL13 |
|
Dark-ON |
E3T-FL12
*2 *3 |
E3T-FL14 |
|
1 to 30 mm
(Red light) |
Light-ON |
E3T-FL21
*2 *3 |
E3T-FL23 |
|
Dark-ON |
E3T-FL22
*2 *3 |
E3T-FL24 |
|
|
|
|
АКСЕССУАРЫ ДЛЯ ДАТЧИКОВ OMRON E3T |
|
SLITS |
|
Slit
width |
Sensing distance
(typical)
(Sensor model) |
Minimum
detectable
object (typical) |
Model |
Quantity |
Remarks |
|
0.5-mm dia. |
100 mm
(E3T-ST1[]) |
0.5-mm dia. |
E39-S63 |
One each for Emitter and
Receiver; common with Slit
widths of 1 dia. and 0.5 dia.
(total
of 2) |
Plug-in type round
slits Can be used
with E3T-ST[][]
Through-beam Models. |
|
30 mm
(E3T-ST2[]) |
|
1-mm dia. |
300 mm
(E3T-ST1[]) |
1-mm dia. |
|
100 mm
(E3T-ST2[]) |
|
0.5-mm dia. |
50 mm
(E3T-FT1[]) |
0.5-mm dia. |
E39-S64 |
Plug-in type round
slits Can be used
with E3T-FT[][]
Through-beam Models. |
|
30 mm
(E3T-FT2[]) |
|
1-mm dia. |
100 mm
(E3T-FT1[]) |
1-mm dia. |
|
50 mm
(E3T-FT2[]) |
|
|
|
|
РЕФЛЕКТОРЫ |
|
Name |
Sensing
distance
(Sensor model) |
Minimum
detectable
object (typical) |
Model |
Quantity |
Remarks |
|
Small
Reflectors |
200 mm (10
mm) *
(E3T-SR2[]) |
2 mm dia. |
E39-R4 |
1 |
Provided with the E3T-SR2[]
Retro-reflective Models. |
|
100 mm (10
mm) *
(E3T-SR3[]) |
E39-R37 |
Provided with the E3T-SR3[]
Retro-reflective Models. |
|
|
|
|
МОДУЛЬ НАСТРОЙКИ ЧУСТВИТЕЛЬНОСТИ |
|
Appearance |
Sensing
distance
(typical) |
Model |
Quantity |
Remarks |
|
 |
300 to 800
mm |
E39-E10 |
1 |
Can be used with the E3T-ST1[] Through-beam Models. |
|
|
|
|
КРЕПЕЖ |
|
Appearance |
Model |
Quantity |
Remarks |
|
 |
E39-L116 |
1 |
Can be used with the E3T-S[][][] Side-view Models.
(A securing nut plate is provided with the Mounting
Bracket.) |
|
 |
E39-L117 |
|
 |
E39-L118 |
|
 |
E39-L119 |
Can be used with the E3T-F[][][] Flat Models. |
|
 |
E39-L120 |
|
|
|
|
РАЗЪЕМЫ и КАБЕЛИ ДЛЯ ДАТЧИКОВ OMRON
E3T |
|
Size |
Cable |
Appearance |
Cable
type |
Model |
|
M12
(For -M1TJ
models) |
Standard |
 |
2 m |
4-wire |
XS5F-D421-D80-A |
|
5 m |
XS5F-D421-G80-A |
|
e-CON |
Standard
cable |
 |
2 m |
4-wire |
E39-ECON2M |
|
5 m |
E39-ECON5M |
|
 |
0.5 to 1 m |
E39-ECONW[]M
Replace [] with the cable
length in 0.1-m increments. |
|
1.1 to 1.5
m |
|
1.6 to 2 m |
|
|
|
|
ТЕХНИЧЕСКАЯ ДОКУМЕНТАЦИЯ OMRON
E3S-C |
|
Технические данные
(English) OMRON E3T (647 kb) |
|
